STCMPO8LCPL3M

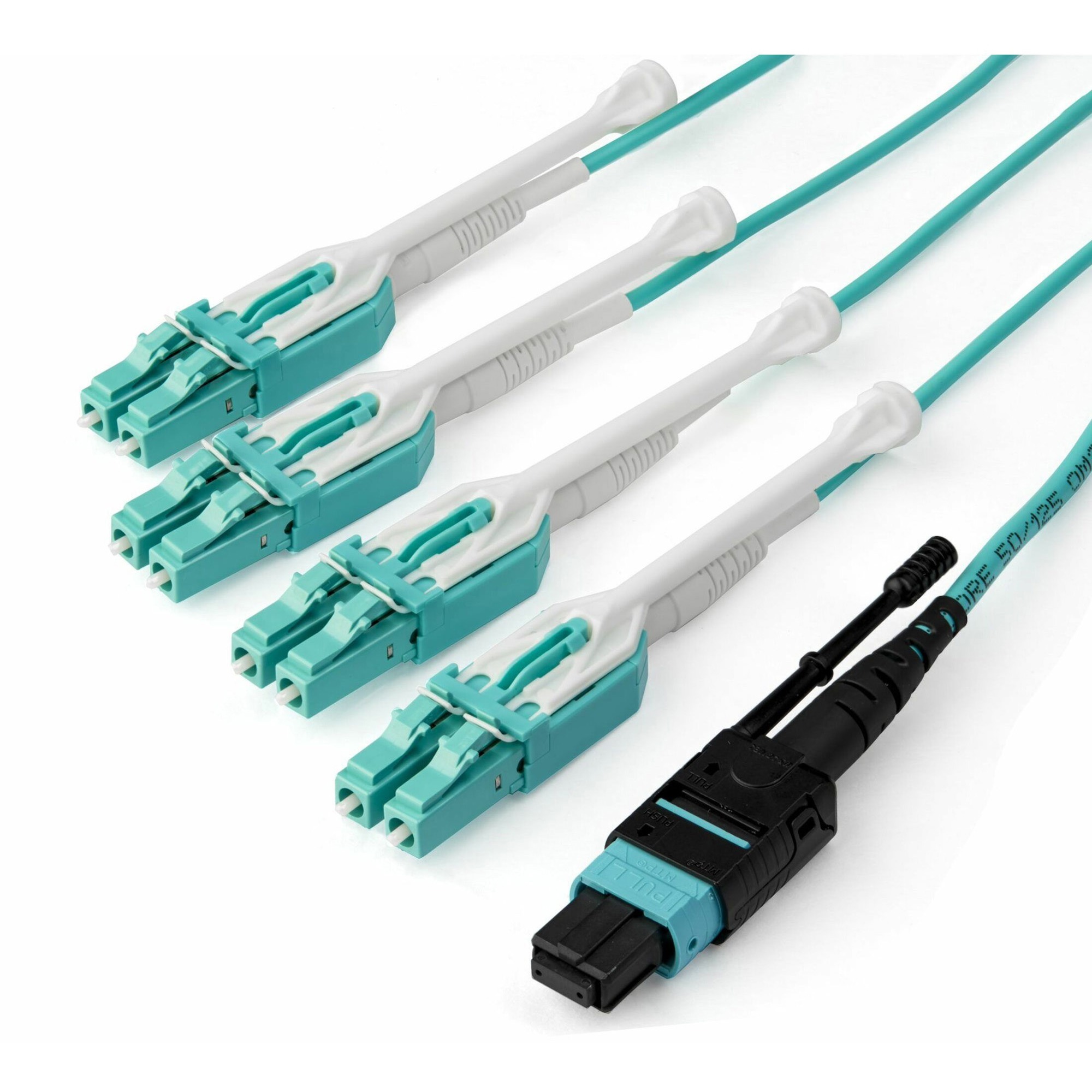

StarTech.com Fiber Optic Patch Duplex Network Cable
9.84 ft Fiber Optic Network Cable for Network Device, Patch Panel, Hub, Switch, Media Converter, Router - First End: 1 x MTP/MPO Network - Female - Second End: 8 x LC Network - Male - 40 Gbit/s - Patch Cable - Plenum, CMP, OFNP - 50/125 µm - Aqua - 1 Each
Call for $

/

Recently Viewed

Product Information

  • OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125"m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
  • COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
  • SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: 0.5dB (MTP), 0.2dB (LC)
SPSShipLT UPSOK NonReturnable ManufacturerBrochure AboutBrand FileAvailable
Check Availability
EA
Detail
General Information
Manufacturer StarTech.com
Manufacturer Part Number MPO8LCPL3M
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Fiber Optic Patch Duplex Network Cable
Marketing Information This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.
Packaged Quantity 1 Each
Product Type Network Cable
Technical Information
Cable Type Fiber Optic
Cable Characteristic Patch Cable
Fiber Optic Mode Multi-mode
Fiber Optic Cable Core/Cladding Specification 50/125 µm
Cable Length 9.84 ft
Connector Type on First End MTP/MPO Network - Female
Connector Gender on First End Female
Connector on First End Details 1 x MTP/MPO Network - Female
Connector Type on Second End LC Network - Male
Connector Gender on Second End Male
Connector on Second End Details 8 x LC Network - Male
Jacket Type PlenumCMPOFNP
Device Supported Network DevicePatch PanelHubSwitchMedia ConverterRouter
Data Transfer Rate 40 Gbit/s
Features Uniboot ConnectorPush-Pull Tab
Physical Characteristics
Color Family Green
Product Color Aqua
Weight (Approximate) 0.12 lb
Shipping Height 0.39"
Shipping Width 8.66"
Shipping Weight (Approximate) 2.24 oz
Miscellaneous
Environmentally Friendly Yes
Country of Origin China
Warranty
Limited Warranty Lifetime
